Badger Meter Model 320 Pulse Transmitter

• Pulse Output:
  • Isolated solid state switch in any standard or custom flow total units
  • Adjustable 50 mS to 1.0 second pulse output width in 50 mS increments
  • Maximum sinking current: 100mA @ 36 VDCMultiple inputs
• Power Requirements:
  • 12-30VAC, 85mA max
  • 12-40VDC, 30mA max
  • Reverse and over voltage protected to 40VDC
• Input Frequency: 0.4 to 10 KHz
• Mounts on panels, DIN rails or enclosures
• Size: 1.75″ x 2.75″ x 1″

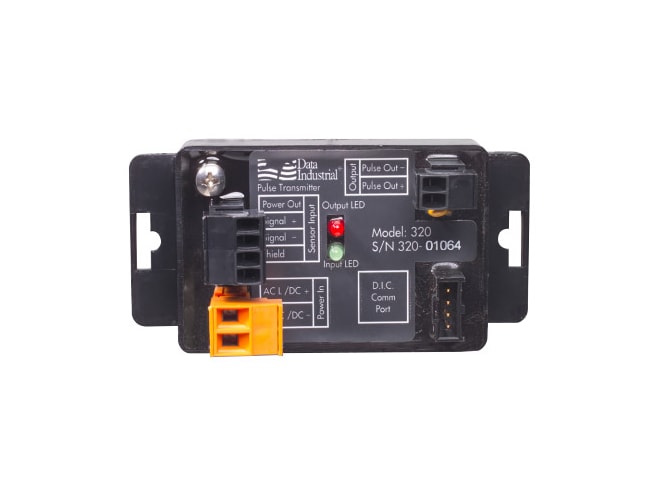

The Badger Meter Model 320 is a compact, programmable transmitter capable of converting the signal from Badger Meter
flow sensors to a scaled units/pulse signal. 320 meters accept both standard square wave signals as well as sine waves
making it a versatile transmitter for numerous applications.

With an onboard micro-controller and digital circuitry, the 320 is programmed from a computer which eliminates the need
to set dip switches and produces precise, accurate and drift free signals of high resolution.

The Badger Meter Model 320 pulse transmitter features a compact cast epoxy body that can easily be mounted to panels,
DIN rails or enclosures. With multiple inputs, ease of use and a variety of enclosures, the Model 320 is a powerful
and competitively priced transmitter for many of today’s demanding applications.
