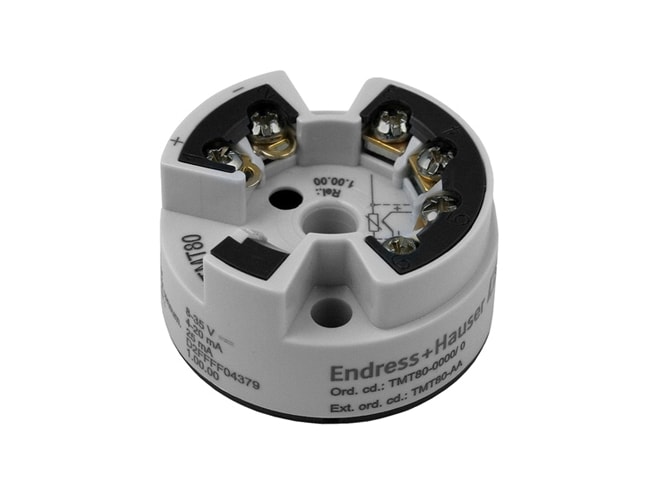

E+H iTEMP TMT80 Temperature Head Transmitter

• 2-wire technology
• 4 to 20 mA analog output
• Fault signal on sensor break or short circuit
• Meets the EMC requirements as per NAMUR NE 21
• Galvanic isolation 500 V (input/output)
• Application specific measuring range setting
• PC programmable (PCP)

The E+H iTEMP TMT80 Temperature Head Transmitter is configurable and supports both selected resistance sensor types and thermocouples. In order to obtain the highest measurement precision, linearization characteristics for every type of sensor are stored in the transmitter. The standardized output signal used for process measurement is a 4 to 20 mA signal. This offers fast, easy and cost-saving temperature measuring and reliable measurement values for a wide range of non-ex industry applications.
