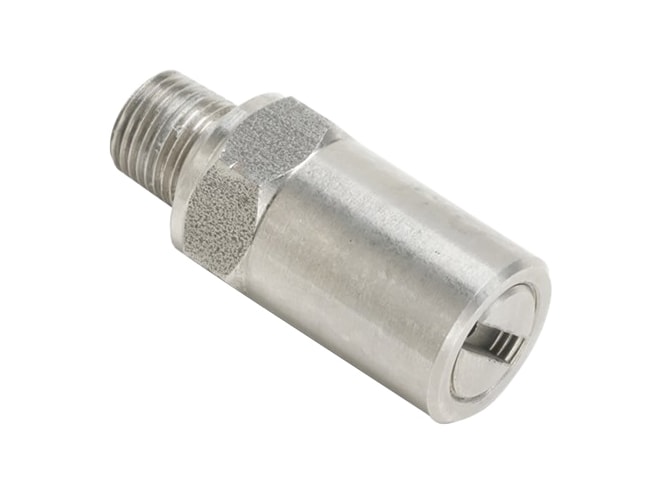

The Fluke 700PRV-1 pressure relief valve kit consists of a relief valve settable from 725 to 5800 PSI
(50 to 200 bar) to be used with the 700HTP-1 Hydraulic Test Pump. The 1/8″ NPT male thread to fits
directly into the Fluke 700HTP-1 pressure pump.
The Fluke 700PRV-1 pressure relief valve kit uses a multi-turn adjustment screw to set preload on internal
disc springs. This relief valve will protect the most commonly used Fluke pressure modules and pressure
instruments from damage due to accidental over-pressurization.
With a repeatability of 10% of the nominal setting, the Fluke 700PRV-1 pressure relief valve kit is preset
at 2,900 PSI (200 bar) and is adjustable from 725 to 5800 PSI (50 to 200 bar). One adjustable relief valve
and an instruction sheet are included with this Fluke kit.
