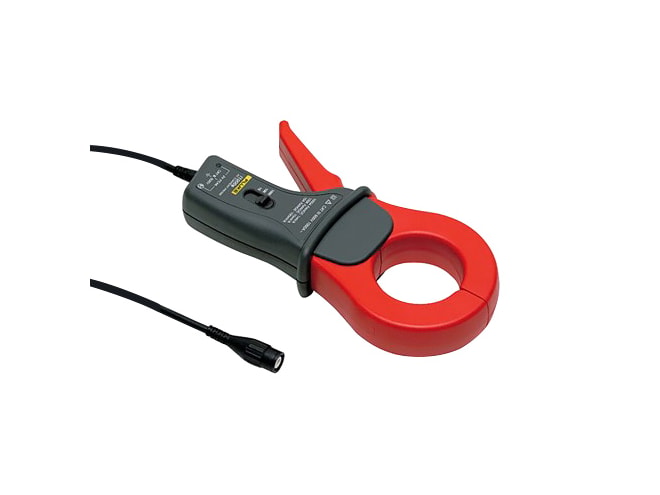

Fluke i1000s AC Current Clamp

• 10, 100, & 1000A nominal AC current ranges
• Continuous current ranges
  • 0.1 to 10A (100mV/A output)
  • 0.1 to 100A (10mV/A output)
  • 1 to 1000A (1mV/A output)
• 1% +1A (48 to 65Hz) %reading + floorspec accuracy
• 2000A maximum non-destructive current
• CAT III 600V & CAT IV 300V
• 1-year warranty

The Fluke i1000s AC current clamp expands applications in industrial and power enviornments by
connecting directly to an oscilloscope using a reinforced coaxial cable and an insulated BNC
connector. It is ideal for measuring distorted current waveform rms and harmonics. The Fluke i1000s AC
current clamp has a passive filter that eliminates noise and ring on rapidly rising di/dt waveforms
ensuring accuracy.
