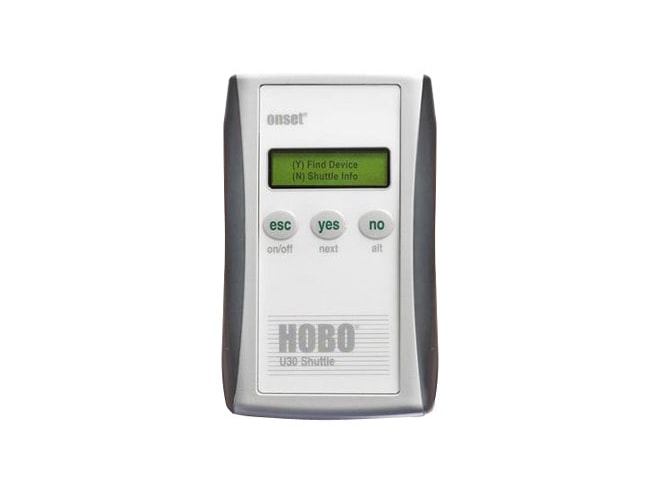

HOBO U-DT-2 U30 Shuttle Data Transporter

• Reads data from field and transfer it to host computer
• Optionally relaunches the logger
• Preserves data in nonvolatile memory
• Displays logger status
• Displays its own status
• Operating temp: 32 to 122°F (32 to 122°F)
• Storage temp: 122°F (32 to 122°F)

The HOBO U-DT-2 U30 Shuttle Data Transporter provides convenient in-field data offload and relaunch of HOBO
U30-NRC systems and HOBO Weather Stations (H21), Micro Stations, and HOBO Energy Logger systems (H22). The
U30 Shuttle’s 2 x 16-character display shows current readings (for selected loggers), and logger status.

The U30 also preserves data in nonvolatile memory, even if batteries are depleted. The displays shows logger
status including memory, battery level and sensor readings as well as its own status. The clock does not need
to be reset when changing the batteries. The U30 allows you to test individual smart sensors.

The Logger to shuttle transfer speed is 30 seconds with a USB 64K and 60 seconds with serial. The shuttle to
host transfer is 3 to 5 minutes (depending on computer) for a full shuttle off load of 4MB.

Requirements include a USB cable (provided) with compatible logger or base system and HOBOware 2.6 or greater.
