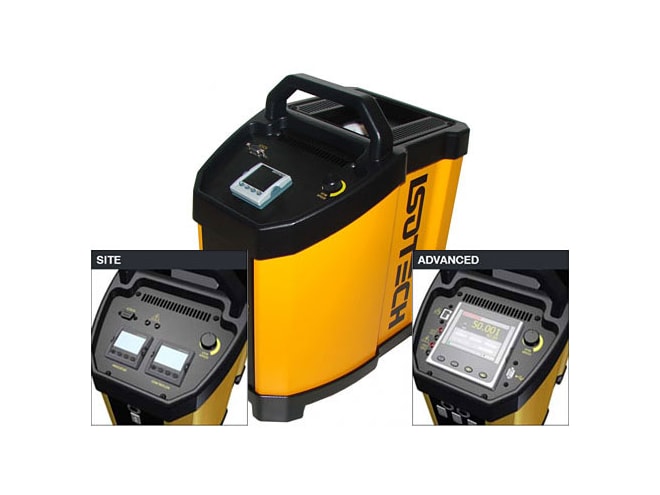

Isotech Calisto 4953 Temperature Calibrator

• 35 x 160mm calibration volume
• ±0.03°C stability (Basic & Site models)
  • ±0.02°C stability (Advanced model)
• Common uniformity specifications at 250°C
  • <0.011°C Radial, Liquid Bath mode
  • <0.02°C Axial, Liquid Bath mode (40mm)
  • <0.02°C Radial, Dry Block mode (between wells)
  • <0.25°C Axial, Dry Block mode (40mm)
• 15min heating time from 25 to 250°C
  • 25min to cool

The Isotech Calisto 4953 temperature calibrator can be used as a dry block or liquid bath. Accessories are available for surface sensor calibration, to calibrate
infrared thermometers and even to use as an ITS-90 Fixed Point System with calibration uncertainties as small as 0.0005°C. With excellent stability and distributed
heating / cooling zones for good uniformity these calibrators offer proven thermal performance and are easy to use.

Basic Model

• Digital display of set and nominal block temperature
• Use with a separate external indicator to compensate for gradients and loading
• Calibrator does not need calibrating; only the indicator & sensor need re-calibration
• Cal Notepad software
• Serial PC interface

Site Model

• Digital display of set and nominal block temperature
• Single channel indicator for reference probe
• Best Practice calibration with established traceability and uncertainty
• Re-calibration requires sending whole unit in
• Cal Notepad software
• Serial PC interface

Advanced Model

• Digital display of set and nominal block temperature
• Three channel indicator for reference probe and units under test
• Advanced features including automatic temperature cycling and logging
• Best Practice calibration with established traceability and uncertainty
• Re-calibration requires sending whole unit in
• I-Cal Easy LOG software & built-in web server
• Ethernet & USB host PC interface
