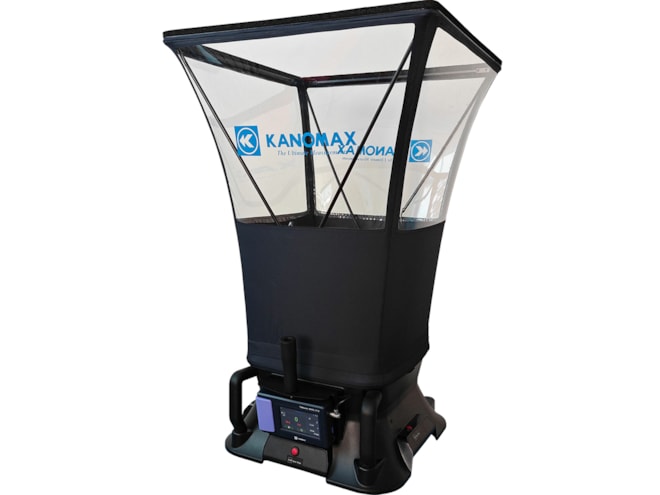

Kanomax Model 6720 TABmaster Airflow Capture Hood

• Airflow:
  • Accuracy: +/-3% of reading +/-8m3/h (>85m3/h)
  • Resolution: 1m3/h
• Velocity:
  • Range: 0.15 to 40m/s (pitot tube), 0.15 to 14m/s (velocity grid)
  • Accuracy:
    • Readings: +/-3% +/-0.05m/s
    • 0.25m/s
  • Resolution 0.01m/s
• Differential pressure:
  • Range: -2,500 to 2,500Pa
  • Accuracy:
    • Readings: +/-1.5%
    • +/-0.25Pa
  • Resolution: 0.001Pa
• Temperature:
  • Range: 32 to 140°F (0 to 60°C)
  • Accuracy: +/-0.5°C
  • Resolution: 0.1°C
• Humidity:
  • Range: 0 to 100%RH
  • Accuracy: +/-3.0%RH (10 to 90%RH)
  • Resolution: 0.1%RH
• 4 x AA batteries or AC adapter power supply
• CE-mark standard

The Kanomax Model 6720 TABmaster Airflow Capture Hood includes an interchangeable hood to sample the air from any duct size. The unit is lightweight and easy to handle, and the full color screen can be tilted for optimal viewing angle at any height. The Model 6720 equips a removable handheld micromanometer with Bluetooth wireless capability.

The unit displays both the direction and velocity of airflow, and is capable of storing up to 8,000 measurements, including multiple measurements under the same ID number. Two apps are available for data management: the Kanomax TAB Viewer (for Android/iOS) and Building Start AirNAB (for iOS). It is approved for HERS (Home Energy Rating System) testing, and a NIST traceable calibration certificate is included.

Applications

• HVAC testing, adjusting, and balancing
• Air volumetric flow measurements through registers, diffusers, and grilles
• Direct readout at supply and return airflow
• Air velocity measurements in the duct
