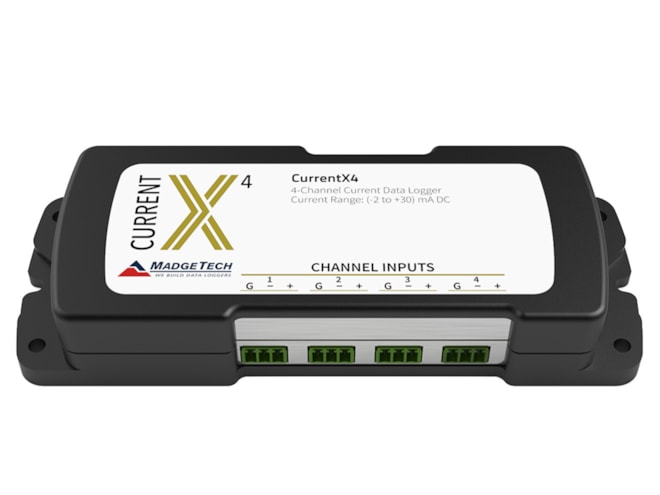

The MadgeTech CurrentX Series is a battery powered, low level DC current
data logger with a reading rate of up to 4Hz and is available in 4, 8, 12 and 16
channel options. The CurrentX uses a standard USB-A to Micro USB cable and has increased
memory for more readings and increased download speed.
The CurrentX features an 18 month typical battery life, user replaceable battery
and programmable engineering units. It utilizes non-volatile solid state
memory for storage, providing maximum data security even if the battery fully discharges.
To maximize memory capacity, users can enable or disable channels. Each channel can be
named with up to a ten digit title for easy identification.
The MadgeTech Software allows for simple and easy starting, stopping and downloading
from the CurrentX Series data loggers. Graphical, tabular and statistical data is provided for
analysis and data can be viewed in multiple units, using the Engineering Units function.
The data can also be set up to automatically export to Excel for further calculations.
